Engineered Retaining Walls for Las Vegas Commercial Sites
A retaining wall on a commercial property is load-bearing infrastructure. It anchors the parking lot, the building pad, the access road. We engineer and build them with proper footing, rebar placement and drainage so they stay stable under the weight they carry. Free written estimate.
On a commercial lot, a retaining wall is the foundation of the site layout. It holds back soil and water pressure so the parking, the building, the access road can sit level and stable. That is structural work, not landscaping.
The footing must be sized to the height of the wall and the weight pressing down on it from above. Rebar runs through the concrete to resist bending. A drainage layer and weeping tile behind the wall prevent water from building pressure that would push it over. Without these elements, the wall will lean, crack and eventually fail.
We measure the slope, the height, the surcharge (parking, building, road above), and engineer the footing depth and rebar layout to handle the load.
Excavate the footing trench
The footing is dug below frost line and to the depth the engineer specifies. A shallow footing is the most common cause of wall failure.
Form, rebar, and pour or lay block

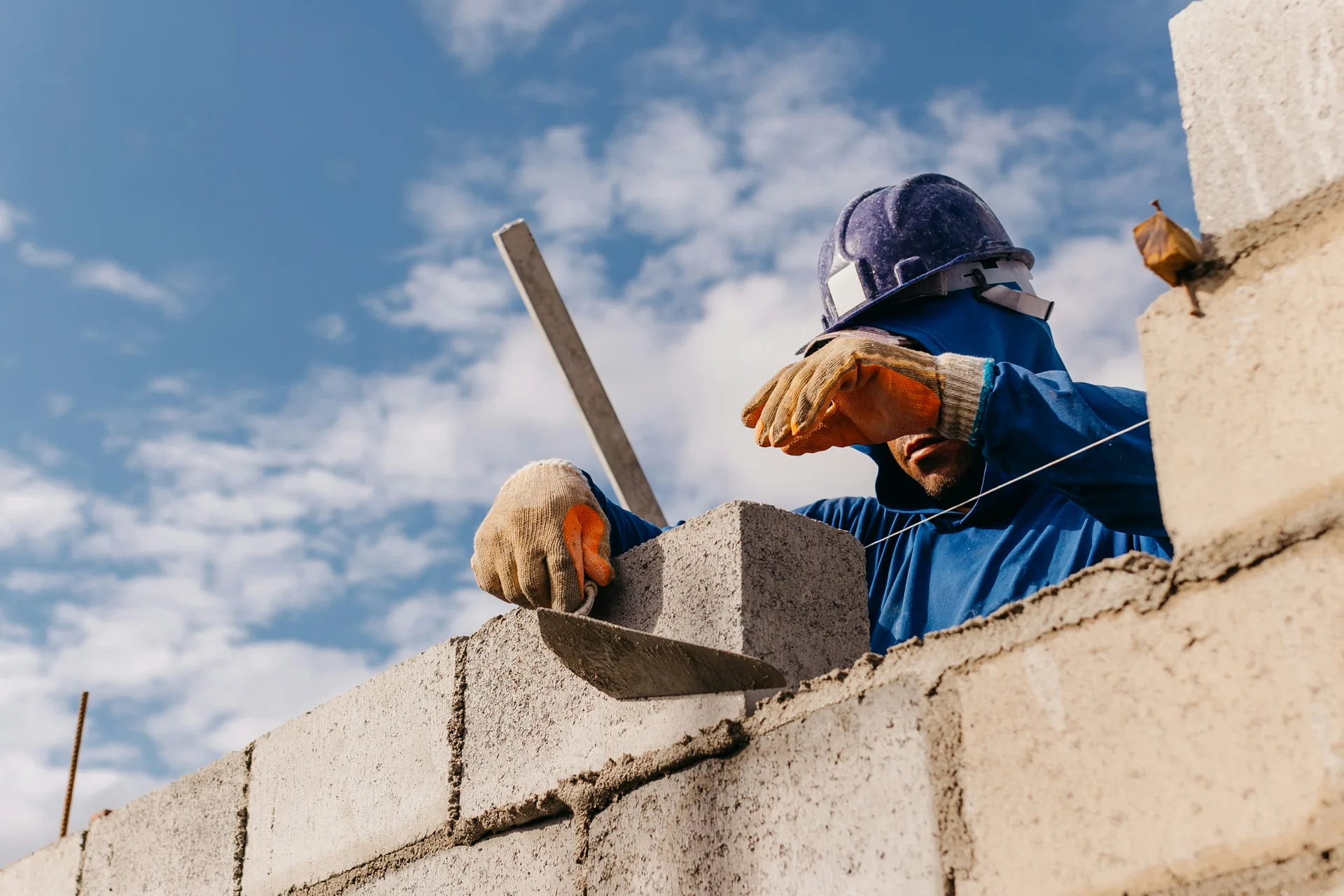

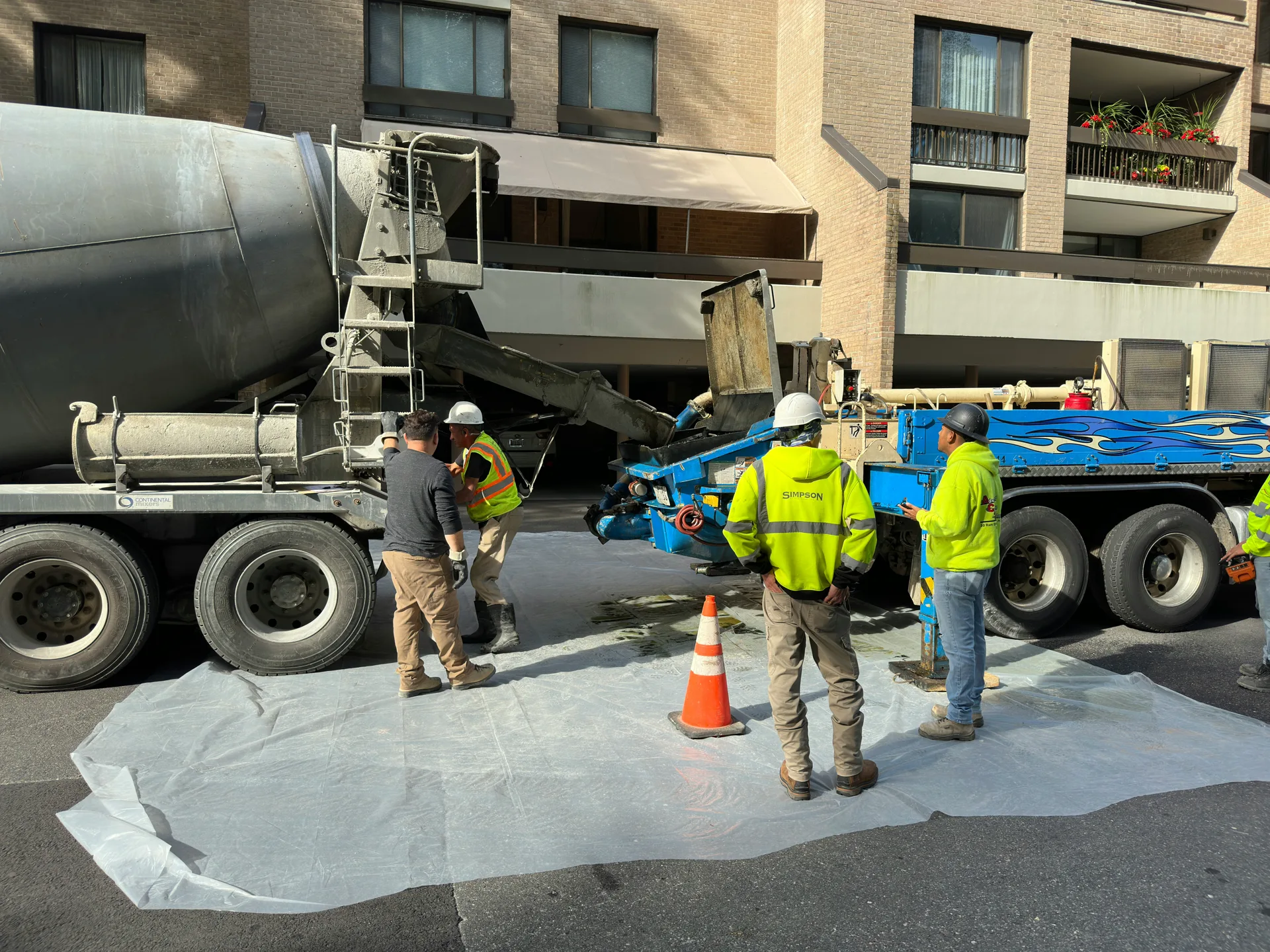

For poured walls, forms are set and rebar tied in place before concrete is placed. For block walls, units are laid and cores filled with reinforced concrete.
Install drainage and backfill
Perforated drain tile and a gravel layer go behind the wall to shed water. Backfill is compacted in lifts so the wall is not pushed by hydrostatic pressure.
When walls fail
Identifying and Fixing Failing Retaining Walls
A wall that is leaning, bulging or cracking is losing its battle with water or weight. The most common culprit is water pressure building behind the wall because drainage failed or was never installed. The second is a footing that was not dug deep enough or sized for the load.
Repair depends on how far the wall has moved and what it is holding up. A wall caught early, with visible cracks but still mostly plumb, can sometimes be stabilized by installing drainage and underpinning the footing. A wall that has shifted badly, especially one holding up a parking lot or building, is safer rebuilt from the ground up. We assess the damage and give you a straight answer on whether to repair or rebuild.
Engineering, surcharge loads, drainage and repair for commercial retaining walls in Las Vegas.
Scale and load. A commercial wall holds back the grade under parking, building pads and access roads, so it carries far heavier surcharge loads and is engineered, footed and reinforced for them, not built to a residential rule of thumb.
Usually, yes, especially for height and surcharge. We build to engineered drawings for the footing, reinforcement and drainage, and can coordinate the engineering as part of the project.
Almost always water pressure or an undersized footing. Without drainage behind it, water builds up and pushes the wall over time. Commercial retaining wall repair addresses that cause, not just the visible lean.
It depends how far it has moved and what it is holding up. A wall caught early can sometimes be stabilised; one that has shifted badly, especially under parking or a building, is safer rebuilt. We give a straight engineering assessment.
Yes. We build cast-in-place poured walls and engineered, cored-and-reinforced block walls. We recommend one based on the height, the load, the site access and the finish the project needs.
Client reviews
What Las Vegas Businesses Say About Their Retaining Walls
Building a new wall to hold a commercial grade, or repairing one that is moving, send us the site details and we will assess the wall and provide a written quote.
